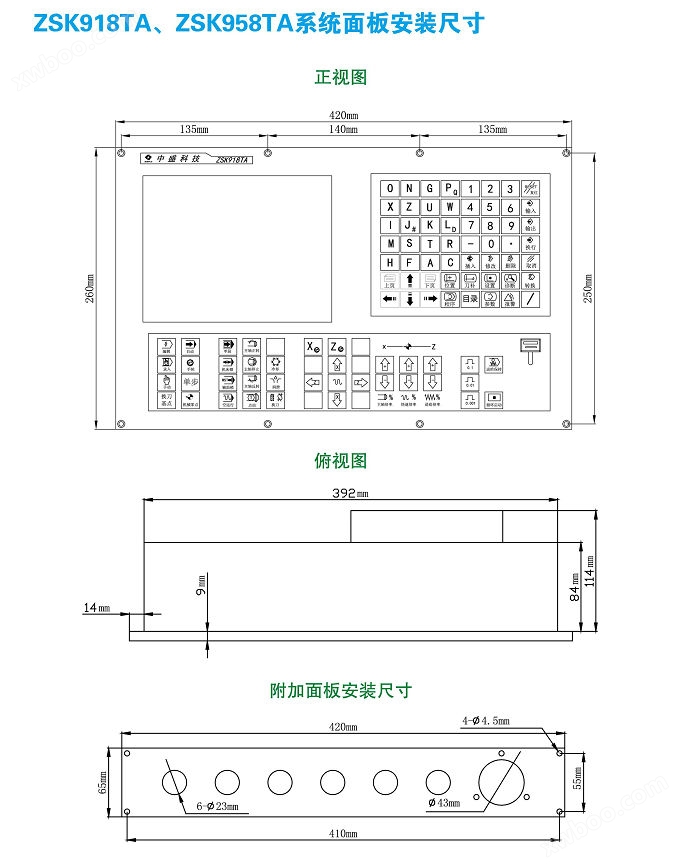

motion control function

Control axis: Two axis（X、Z）.

Interpolation method:X、ZTwo axis straight line and arc interpolation.

Location range: ±9999.999mm； Minimum code unit:0.001mm.

Maximum feed rate: straight line15000 mm/min Feed rate:0～150%Sixteen level real-time adjustment.

Fastest forward feed speed: straight line30000 mm/minQuick magnification:F0、25%、50%、100%Level four.

Manual feed rate:0mm/min～1260mm/minSixteen level real-time adjustment.

Feed per revolution:0.01mm/r～500mm/r(Installation required100p/r～5000p/rSpindle Editor).

Acceleration and deceleration method: fast movement adoptsSType acceleration and deceleration; The cutting feed adopts exponential acceleration and deceleration.

Electronic gear ratio: frequency doubling1～32767Frequency division1～32767.

Electronic hand pulse function:0.1mm、0.01mm、0.001mmThree levels.

Manual operation: manual continuous feed, handwheel feed, manual incremental feed, manual machine tool return to reference point

Program editing function

3A single fixed loop code and7Compound loop code.

6144KBMaximum capacity384A program; Support quadruple subroutine calls and user macro program calls.

Programming format:ISOStandard format; relative/Absolute mixed programming;

Programming: functions such as input, output, retrieval, modification, insertion, deletion, and copying.

Single program segment execution; Skip program segment execution.

Thread function

Imperial Single Head/Multi head straight thread, taper thread, end face thread, and pitch thread; The length of the thread tail can be specified by the program.

Thread pitch:0.001mm～500mm(metric system);0.06tooth/Inches~25400tooth/Inches (Imperial).

Spindle encoder:100p/r～5000p/rencoder.

tool function

Adaptive knife holder: maximum setting is8Workstation electric knife holder.

Tool position signal input method: direct input.

Knife changing method:MDI/Automatic absolute tool change or manual relative tool change; Forward rotation for knife selection, reverse rotation for locking.

Knife alignment methods: fixed-point alignment, trial cutting alignment.

Compensation function

Reverse gap compensation:X、ZEach axis0mm～20.000mm.

Pitch error compensation:X、ZEach axis255Compensation points, compensation range: per compensation point0～±255μm.

Tool compensation:32Compensation for tool length and tip radius (compensation method)C）.

Tool repair execution method: Tool movement/Coordinate offset

Spindle function

Control mode: switch quantity control/analog control

Switching control:S□ Instructions fromPLCProgram definition and processing;PLCprogramS1、S2、S3、S4Directly output.

Simulation control:S□□□□□ Specify the actual spindle speed,NCoutput0～10VSimulate voltage control for continuously variable spindle speed, supporting four mechanical gears for the spindle.

Constant line speed cutting function: Yes (effective under spindle simulation control mode)

Display interface

Display screen: widescreenLCDEquipped with clock display and graphic display; Fault alarm, soft limit alarm.

Display mode: displayed in both Chinese and English, set by parameters.

Auxiliary functions

hand movement/MDI/Automatic control of spindle forward, reverse, and stop; Coolant start stop; Lubrication start stop;MDI/Automatic control of chuck clamping/Release, control the tailstock to enter/Step back. Machine tool lock, idle operation, auxiliary lock.

communication

USBCommunication function; supportCNCgiveCNC、PCTwo way communication,CNCSoftwarePLCommunication upgrade is possible.

Adapted Driver

pulse+Direction signal inputZS12A、ZS12BSeries digital AC servo drive device;

standard function

Self diagnostic function, cyclic processing function, built-inPLCFunction.

Gcode

function

Gcode

function

G00

Positioning (rapid movement)

G70

Composite precision machining cycle

G01

Linear interpolation (cutting feed)

G71

Composite outer circular rough car cycle

G02

Clockwise arc interpolation

G72

Composite end face coarse turning cycle

G03

Counterclockwise circular interpolation

G73

Composite enclosed rough car cycle

G04

Pause, quasi stop

G74

Composite end face deep hole machining cycle

G20

Selection of Imperial Units

G75

Composite inner and outer circular groove cutting cycle

G21

Selection of metric units

G76

Composite thread cutting cycle

G26

Return to the tool change reference point

G90

Single type outer and inner circle cutting cycle

G28

Return to mechanical zero point

G92

Thread cutting cycle

G32

Equidistant thread cutting

G94

End face cutting cycle

G40

Blade tip radius compensation canceled

G96

Effective constant line speed control

G41

Left compensation for blade tip radius

G97

Constant line speed control is invalid

G42

Right compensation for blade tip radius

G98

Feed per minute

G50

Coordinate system setting

G99

Feed per revolution

G65

Macro program

Gcode

Hcode

function

definition

G65

H01

assignment

# i = # j

G65

H02

Decimal addition operation

# i = # j ＋# k

G65

H03

Decimal subtraction operation

# i = #j－# k

G65

H04

Decimal multiplication operation

# i = # j ×# k

G65

H05

Decimal division operation

# i = # j ÷# k

G65

H11

Binary addition (or operation)

# i = # jOR# k

G65

H12

Binary multiplication (and operations)

# i = # jAND# k

G65

H13

Binary XOR

# i = # jXOR# k

G65

H21

Decimal square root

# i =

G65

H22

Take absolute value in decimal system

# i=︱#j︱

G65

H23

Decimal remainder extraction

# i = #j－trunc（#j÷# k）×# k

G65

H24

Convert decimal to binary

# i = BIN（# j）

G65

H25

Convert binary to decimal

# i = BCD（# j）

G65

H80

Unconditional transfer

Jump to program segmentN

G65

H81

Conditional transfer1

IF# j ＝# k，GOTON

G65

H82

Conditional transfer2

IF# j ≠# k，GOTON

G65

H83

Conditional transfer3

IF# j ＞# k，GOTON

G65

H84

Conditional transfer4

IF# j ＜# k，GOTON

G65

H85

Conditional transfer5

IF# j ≥# k，GOTON

G65

H86

Conditional transfer6

IF# j ≤# k，GOTON

G65

H99

Generate user alarm

Generate（500+n）User alarm
