TC1944 Digital Printing Machine
TC1944 Digital Printing Machine
Product details

TC1944E Digital Printing Machine



Function and characteristic

1. The American fluororubber paper roller prevents static electricity and ink from flying, resulting in more accurate printing dimensions and rejecting wrinkles.

2. Japanese THK silent linear guide, smoother movement, more stable printing, and longer lifespan.

3. Anti scratch paper function: automatic paper measurement, anti scratch paper function, consumables curling, automatic printing pause to prevent scratching of the nozzle.

4. Intelligent ink shortage alarm: Intelligent ink shortage reminder reduces the tedious task of frequently checking the remaining ink level, while timely reminding to add ink to ensure the continuity of printing work.




5. Anti collision small frame: The height of the nozzle can be adjusted according to different printing consumables, and anti-collision devices can be added at both ends to provide more comprehensive safety protection for the nozzle.



6. Standard computer host, monitor, keyboard and mouse stand, eliminating the hassle of purchasing a separate computer desk, and making the workshop layout simpler



7. Intelligent drying system, synchronized with printing, energy-saving and emission reducing. During the printing process, the temperature can be adjusted in real time according to the actual situation.

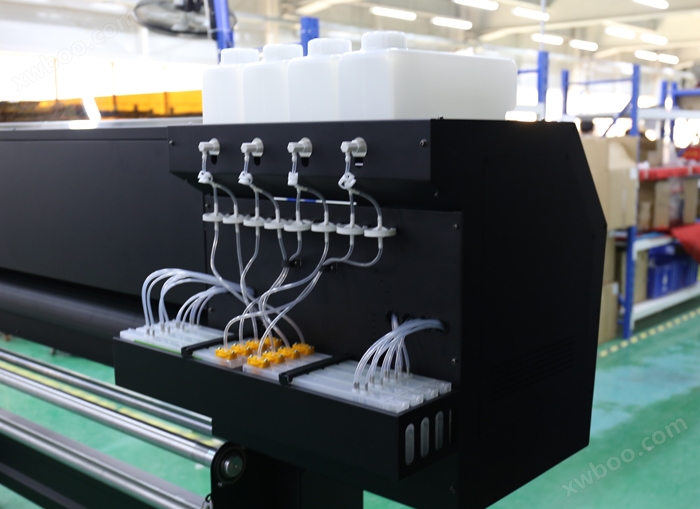

8. Secondary continuous ink supply system: continuous ink supply for long-term printing; Four ultra large capacity ink cartridges, each ink tube independently supplies ink to a row of spray holes, ensuring high-speed output of large-area thick images.



9. Inflatable shaft type rewinding system: During operation, there is no need to use other accessories to fix the printing medium, and it automatically adjusts using the pressure of air. Make the force uniform and make the paper flow smoother. This winding system has the characteristics of high load-bearing capacity, long service life, uniform force distribution during paper feeding and unloading, and short inflation and deflation operation time.


Technical parameters and specifications

Technical parameters and specifications

Equipment model

TC1944

Nozzle

nozzle type

Epson I3200-A1

Number of nozzles

4 of them

Nozzle properties

Automatic cleaning, automatic flash spray moisturizing function

PRINT SPEED

2pass

170㎡/h

3pass 110㎡/h

4pass

85㎡/h

ink

color profile

C M Y K

Ink type

sublimation ink

Ink supply method

Siphon ink supply

Effective width

1900mm

Print media

HEAT TRANSFER PAPER

Media transmission

Inflatable shaft automatic retraction system

Drying method

External intelligent air and heat integrated dryer

Moisturizing mode

Fully sealed automatic moisturizing and cleaning

Rip Software

Support Maintop6.0, photoprint, ONYX, NeoStampa and other software, with Maintop6.0 as standard

Support image formats

JPG, TIF, PDF, etc

computer configuration

operating system

Win7 64 bit/Win10 64 bit

hardware requirements

Hard drive: 500GB or above (solid state drive recommended), 8GB of RAM, graphics card: ATI graphics card with 4GB of RAM, CPU: Intel quad core I5/i7 processor

Interface

Gigabit Ethernet port

Standard configuration

Intelligent drying system, liquid level alarm system

work environment

Humidity: 35% -65% Temperature: 18 ℃ -30 ℃

power requirement

INPUT VOLTAGE

210-230VAC 50/60 HZ 16A

printing system

1000W

drying system

Maximum power: 5500W

Machine size

outline dimension

3070*1550*962mm

Package size

3380*1030*1790mm
