Product Introduction

Silicon core tube production line

A composite optical cable sleeve with a permanent solid lubricant (i.e. silicon core) on the inner wall, mainly used for the production of polyethylene and silicone mixture extrusion synthesis The whole machine is reasonable, easy to operate, highly automated, and can achieve stable production

Silicon core tube

Silicon core pipes have the good physical and mechanical properties of polyethylene pipes, such as high strength, high toughness, corrosion resistance, and long service life. They also have the characteristics of low friction coefficient, fast cable threading, long one-time cable threading, and low construction cost And it is equipped with various extrusion marks for easy construction and line inspection. It is another new type of optical cable sheath pipe after PVC flat wall pipe, double wall corrugated pipe, and porous pipe It has been widely used in communication trunk engineering, highways, and railway construction, and is the preferred pipe material for underground communication optical cable sheaths
The production line equipment consists of three extruders, co extrusion heads, cooling sizing, and traction coiling. It has the characteristics of high automation, good plasticization, long service life, and easy maintenance and operation.

Extrusion Machine

Adopting a PE high-efficiency single screw extruder, the extrusion part adopts a forced water-cooled feeding section, the barrel is slotted, and the power consumption of the main driving motor is significantly reduced; The screw with a large aspect ratio (30-36:1) has strong adaptability to materials and excellent plasticizing effect. Barrier type screw design with mixing unit ensures material plasticization quality and high intelligent extrusion.

threaded rod

Specially designed silicone extrusion screw according to the production requirements of silicone extrusion.

Extruder head

The channel is specially treated for greater wear resistance, and the co extrusion screw head increases material pressure, improving product quality.

Vacuum sizing box

Vacuum negative pressure shaping, stainless steel casing, efficient spray cooling to ensure the quality of the pipes.

traction machine

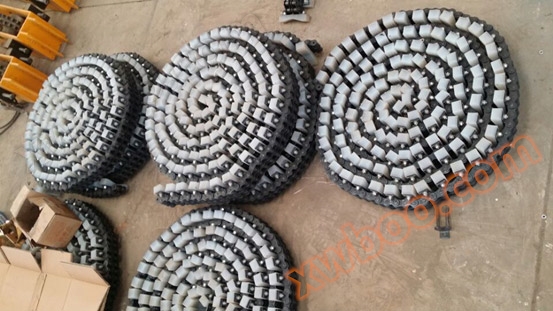

High quality silicone rubber blocks have a longer service life and eliminate the use of recycled materials; The traction speed is controllable and synchronized with the host, with high intelligence and energy saving.

control system

PLC control can be selected to achieve program control of temperature control, extrusion volume, traction winding speed, automatic length calculation, and automatic printing of marks.

1. Low price for equipment of the same quality, good quality for equipment of the same price
2. Mature technology and experienced debugging personnel save time and money for buyers
3. Professional pre-sales service specialists, with over a few photos and videos, and a professional customized configuration list to see where every penny is spent
4. Responsible after-sales service team, providing on-site service within 48 hours in emergency situations
5. Establish specialized files for each customer, ensuring traceability of data and providing historical basis for equipment maintenance and other matters in the future
What Huashida sees is how much money customers can earn from buying our equipment, not how much money they can save. We provide professional analysis for your long-term interests
What Huashida sells is not equipment, but a complete industrial solution
