| Product Model |
T55 |
| CPU |
8-core 1.3~1.5G |
| system |
Android 5.1 |
| RAM |
2GB/3GB |
| ROM |
16GB/32GB |
| camera |
Rear 13 million effective optical pixels
Front 5 million effective optical pixels |
| Display size/type |
5.5”FHD AMOLED； Auxiliary screen: 0.91-inch OLED |
|
| resolution |
1080*1920（1080p） |
| Touch screen type |
Capacitive touch screen |
| size |
170*76*11mm |
| Weight (including battery) |
260g |

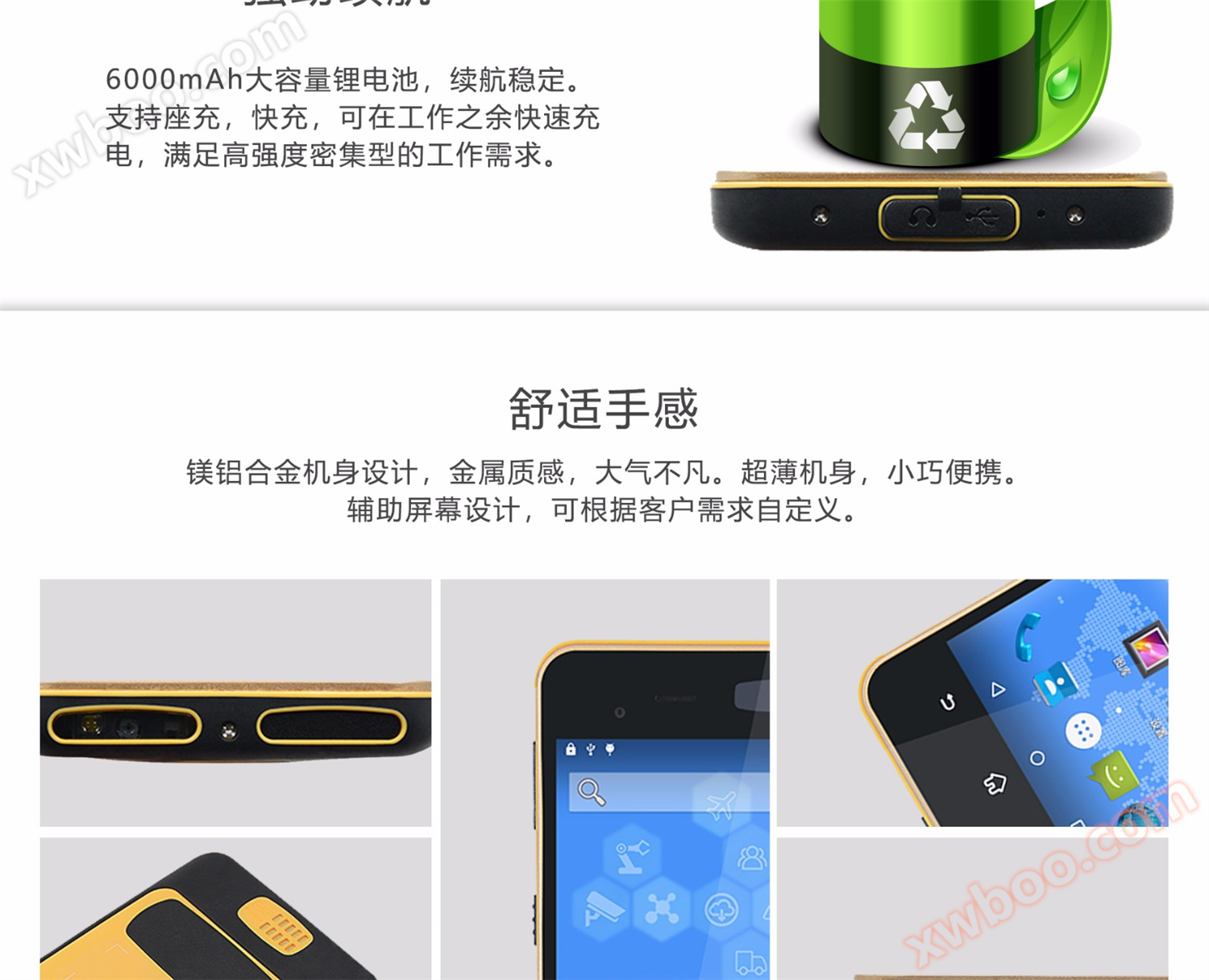

| battery capacity |
6000mAh 3.8V |
| Charging method |
Supports fast charging and wireless charging, DC dedicated fast charging charger with 5V/9V voltage and 1.6A current. |
| Bluetooth |
Bluetooth V2.1+ EDR/ V3.0+ HS/ V4.1 |
| WLAN |
WIFI 802.11 b/g/n/a 2.4G/5G |
| Communication system |
Dual SIM dual standby, 4G full network connectivity |
| GPS positioning module |
GPS，AGPS， Beidou
Positioning accuracy<10 meters, time<40s |
| audio |
Built in speaker |
| ExpressCard slot |
Micro SD card slot（MicroSDCardcompatible128GB）1 SIM card slot, 1 Micro SIM card slot,
|
| external interface |
Earphone interface; EM.IF back clip extension interface;Micro USB interface
|
| keyboard |
5 side keys, 1 home button on the main screen |
| Notification method |
Sound, vibration, LED prompts |
| Operating Temperature |
-20 ℃ to 50 ℃ |
|
| Storage temperature |
-45 ℃ to+60 ℃ |
| humidity |
Humidity 5% to 95% (no condensation) |
| Dustproof and waterproof industrial grade |
IP68 |
| drop test |
Within the operating range, all six sides can withstand the impact of falling from a height of 1.5 meters to a cement floor |
| Rolling test |
Rolling specification 1000 times 0.5 meters, 6 contact surfaces rolling |
| Electrostatic Discharge (ESD) |
± 15kV air discharge, ± 8kV contact discharge |
| Certification and testing report |
CCC、 Mold proof certification, IP68 inspection report, testing report |

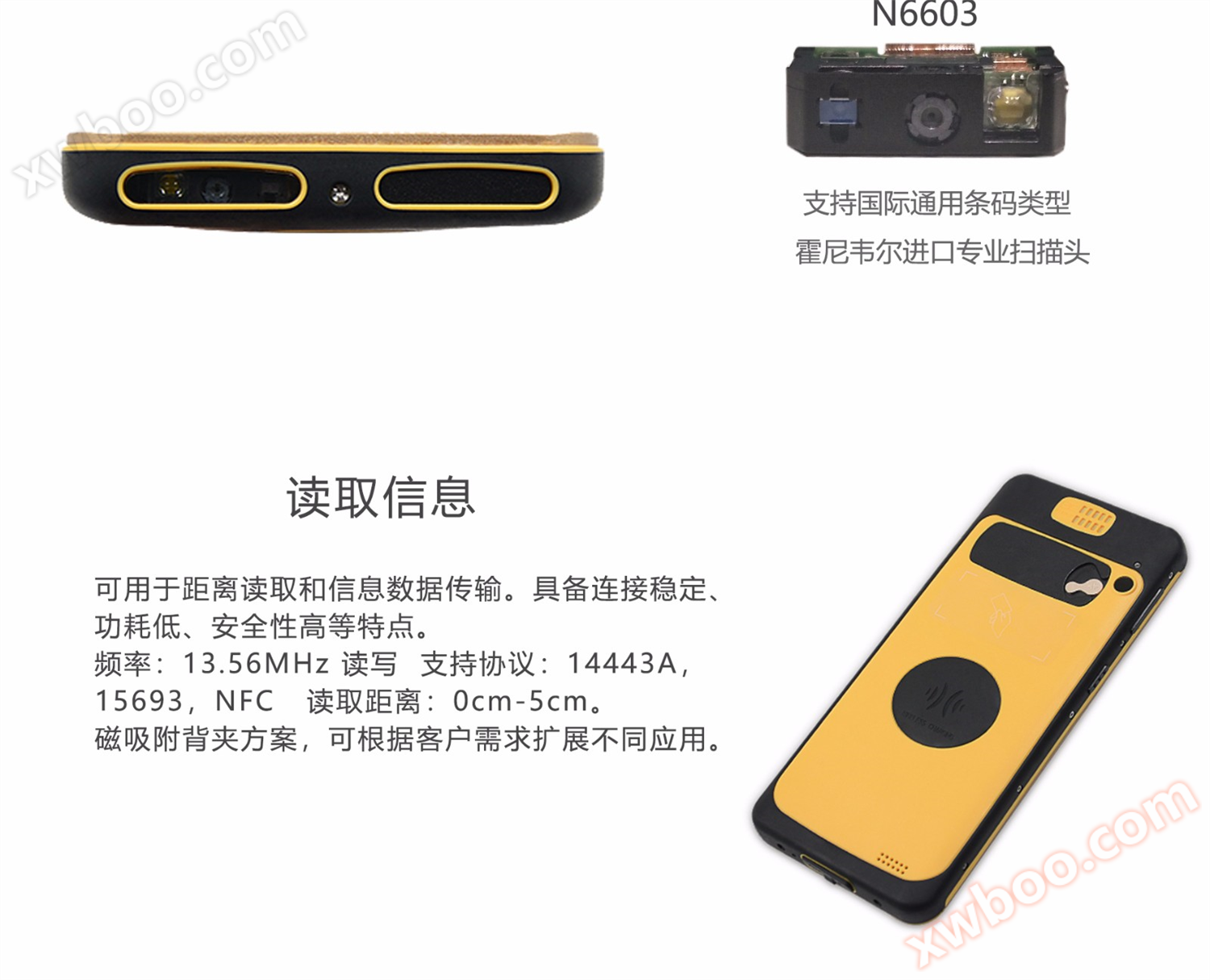

| RFID (High Frequency) |
Frequency: 13.56MHz Read/Write Support Protocol: 14443A, 15693, NFC Reading Distance: 0cm-5cm |
| RFID (ultra-high frequency) |
1. RF scheme ImPinJ R2000/Qilian
2. Operating frequency 902-928MHz (frequency range adjustable)
3. Support protocol standards: EPC C1 GEN2/ISO18000-6C
4. Inventory label method 902MHZ-928MHz frequency hopping (frequency range can be set), or fixed frequency inventory
5. Output power 0-30dBm, step size 1dB
6. Output power flatness of 0.2db
7. Label processing speed>200 tags/second
8. Reading distance>3 meters (2dBi)
9. Dimensions 83.5mm * 81.5mm * 29.8mm |
barcode scanning
Support code system |
N6603 (1. QR code): AZTEC、CODABAR、CODE11、CODE128、EAN128、CODE39、CODE49、CODE93、COMPOSITE、DATAMATRIX、EAN8、EAN13、INT25、MAXICODE、MICROPDF、PDF417、POSTNET、OCR、QR、RSS、UPCA、UPCE、ISBT、BPO、CANPOST、AUSPOST、IATA25、CODABLOCK、JAPOST、PLANET、DUTCHPOST、MSI、TLC39、TRIOPTIC、CODE32、STRT25、 |
|
| Second generation ID card |
Contains hard decoding module, no need for network operation:
1. RF technology: Complies with ISO/IEC 14443 type B standard, as well as the "GA 450-2003 General Technical Requirements for Desktop Resident Identity Card Readers" and "1GA450-2003 General Technical Requirements for Desktop Resident Identity Card Readers * Amendment (Draft)"
2. Confidentiality module: Special module for ID card verification system
3. Card reading distance: 0-5mm
4. Reading time:<1.55
5. Antenna energy output: The electromagnetic field intensity (Hmax) on the antenna surface is ≤ 7.5A/m rms, and the electromagnetic field intensity (Hmin) at 5cm in the normal direction of the antenna surface is ≥ 1.5A/m rms
6. Operating frequency: 13.5MHz ± 7kHz
7. Style 1 back clip size: 83.5mm * 81.5mm * 29.8mm
8. Style 2 back clip size: 170mm * 81mm * 50.6mm/15.5mm |
| Need to be connected to the internet, with second-generation certificate cloud authentication |
| fingerprint module |
1. Matching method: Comparison method (1:1) Search method (1:N)
2. Feature file: 256 bytes
3. Storage capacity: 1000 pieces
4. Security level: Level 5 (from low to high 1, 2, 3, 3, 5)
5. Fake Recognition Rate (FAR):<0.001% (when the security level is 3)
6. False rejection rate (FRR):<0.005% (when the security level is 3)
7. Search time:<0.1 seconds (1:1000, mean)
8. Expansion size 1: 83.5mm * 81.5mm * 29.8mm
9. Expansion size 2: 170mm * 80.7mm * 50.6mm/15.5mm |
| Iris recognition module |
Optical Image Recognition |
| PSAM card |
support |
| ic card |
ISO 7816, GSM 11-11,EMV4.2 and EMV 2000 |
| Thermal print head |
1. Printing width: 58mm
2. Heating points: 384dots
3. Point density: 8 dots/mm
4. Point distance: 0.125mm
5. Thermal printer size: 170mm * 81mm * 50.6mm/15.5mm |
|
| infrared module |
Power infrared meter reading module, 38kHz modulation frequency, 940nm in compliance with DLT 645-2007 and DLT 645-1997 standards for electric meters |
| High precision GPS positioning module |
Positioning accuracy<1m, positioning speed<20s |
| Temperature measurement module |
Support environmental temperature and target temperature testing |
| Distance measurement module |
support |
| Standard Accessories |
USB data cable, dedicated fast charging adapter |
| Optional accessories |
Wireless charging base, functional back clip |
