| SW-CJ-1FD / SW-CJ-2FD

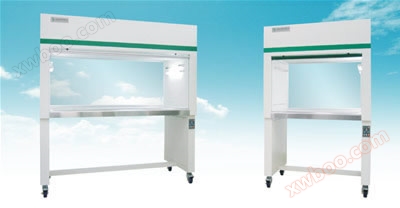

 This is a new type of vertical unidirectional airflow clean operating table, which is widely used in various fields such as electronics, precision instruments, meters, pharmaceuticals, chemical experiments, etc. Features: 1. Filtering technology: adopting efficient filtering technology, with a filtering efficiency of 99.995% (≥ 0.3 μ m particles) 2. Structure: The workbench is made of high-quality stainless steel, which is durable and easy to clean. The box body is made of high-quality cold-rolled steel plate with electrostatic coating and strong corrosion resistance. The streamlined overall shape of the machine minimizes the disturbance of airflow in the work area. 3. High quality swivel casters with brake system, flexible in movement, easy and reliable in fixation. 4. The pre filter is designed for quick replacement and cleaning. 5. The operation baffle is a safety glass sliding door, and the control position of the lifting system can be adjusted up and down freely, with accurate positioning, no faults, maintenance free, and can be completely closed for sterilization. 6. 2 × 15W ultraviolet sterilization lamp eliminates the hidden danger of microbial contamination. The ultraviolet lamp can only operate when the fluorescent lamp is turned off.
|
parameter
|
SW-CJ-1FD
|
SW-CJ-1F
|
SW-CJ-2FD
|
SW-CJ-2F
|
|
Cleanliness level
|
ISO 5Grade (Federal)209E 100Grade)
|
|
colony count
|
≤0.5a/dishoWhen(Φ90mmCultivate petri dishes
|
|
average wind speed
|
≥0.3m/s (adjustable)
|
|
vibration/Half peak value
|
≤4μm(XTheYTheZDirection)
|
|
noise
|
≤62dB(A)
|
≤62dB(A)
|
|
illuminance
|
300Lx
|
|
power supply
|
AC,single-phase220V/50Hz
|
|
maximum power
|
0.4KW
|
0.8KW
|
|
weight
|
~100Kg
|
~150Kg
|
|
Size of workspace W1×D1×H1
|
840×680×520mm
|
1340×680×520mm
|
|
External dimensions of the device W×D×H
|
1000×740×1620mm
|
1000×780×1620mm
|
1500×740×1620mm
|
1500×780×1620mm
|
|
High Efficiency Filter Specifications and Quantities
|
820×600×50×①
|
650×610×50×②
|
|
fluorescent lamp/UV lamp Specifications and Quantities
|
15W×①/15W×①
|
15W×②/15W×②
|
|
remark
|
Single person single-sided
|
Single person double-sided
|
Double single-sided
|
Double sided
|
remark: Optional socket design with power-off protection function, safe and convenient to use! Optional glass sliding door limit alarm(8')Prevent external airflow interference!
|
|
