PE, PP bottle recycling and cleaning line
PE and PP bottle recycling and cleaning line is a hard waste plastic recycling and cleaning line produced by Yili Machinery, which can be used to proc
Product details
PE,PP瓶片回收清洗线

PE, PP bottle recycling and cleaning line

The hard waste plastic recycling and cleaning line produced by Yili Machinery can be used to process materials such as PE or PP bottles, IBC drums, pipes, waste silk, thin sheets, scraps, etc. The entire line includes shredders, crushers, friction washing, rinsing tanks, centrifugal dehydrators, etc., with production capacity ranging from 300kg/h to 5000kg/h. Our hard plastic cleaning line uses effective recycling technology to precisely and effectively purify waste plastics through a cold and hot cleaning system. The final product after cleaning can be used alone or mixed with other materials before processing

Parameter specifications

model Production rate (kg/hr) Installed power (Kw) Water consumption (ton/hr) Artificial
HQX500 500 160 0.5 3
HQX1000 1000 220 1.2 3
HQX2000 2000 350 3 4
HQX3000 3000 410 4 4
HQX5000 5000 500 5 6


Technical features and advantages

  • The entire line is automatically controlled, with high efficiency and high cleanliness;

  • This production line can easily separate soil, sand, and other impurities from plastic sheets;

  • The use of pre-treatment systems such as pre cleaning and label separation greatly improves the cleanliness of the final product;

  • Provide a large-scale dehydrator with a capacity of 5000kg/h;

  • The specially designed rinse tank not only ensures the cleanliness of the cleaning material but also allows for manual or pneumatic removal of impurities;

  • Easy to maintain, low energy consumption, and long lifespan

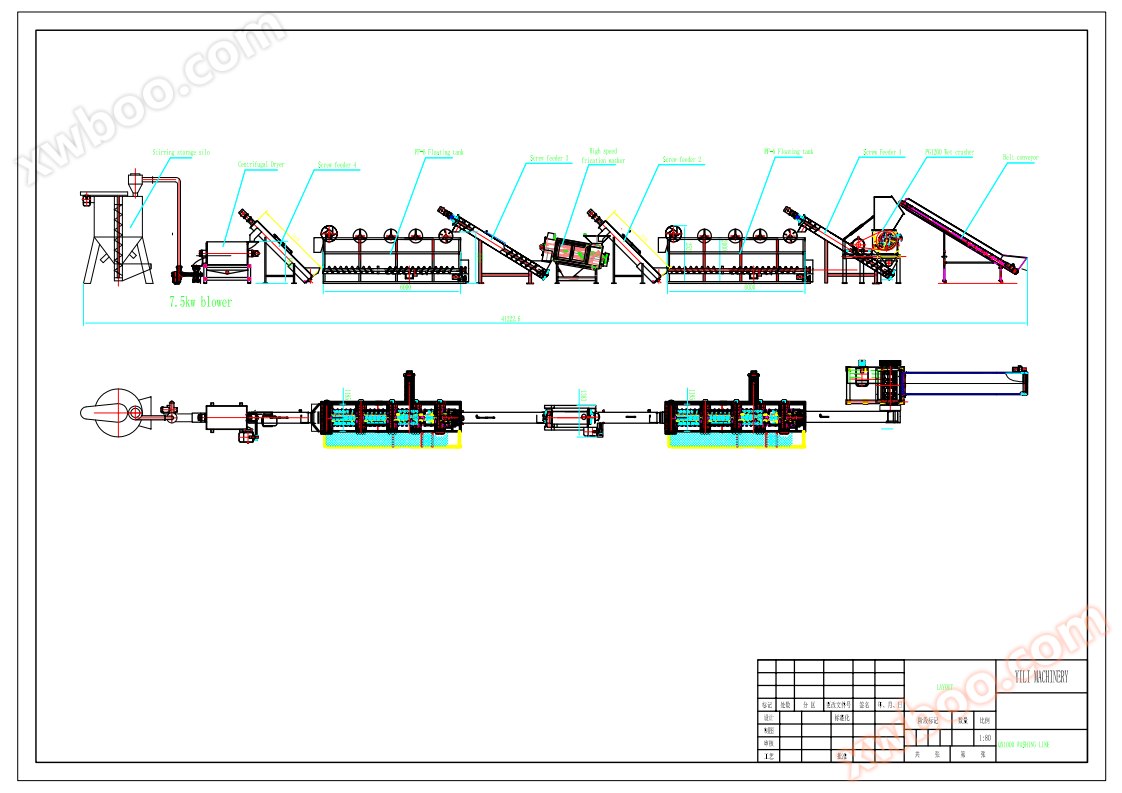

technological process


Technical process


raw material


Shredder


crusher


High speed friction cleaning machine


Floating cylinder


Centrifugal dewatering machine
