Functional Features Details

The function introduction details of HX-ZF desktop dust concentration tester are as follows

Three indicator measurement

The desktop dust concentration tester can measure three indicators: PM2.5, PM10, and TSP.

Desktop design

The instrument adopts a desktop design, which is lightweight and easy to carry.

Can store 100000 records

100000 measurement records, data can be saved for at least ten years without loss during power outages.

Lithium battery power supply

It can be equipped with a high-capacity rechargeable battery pack to ensure that the instrument can work continuously for more than 8 hours.

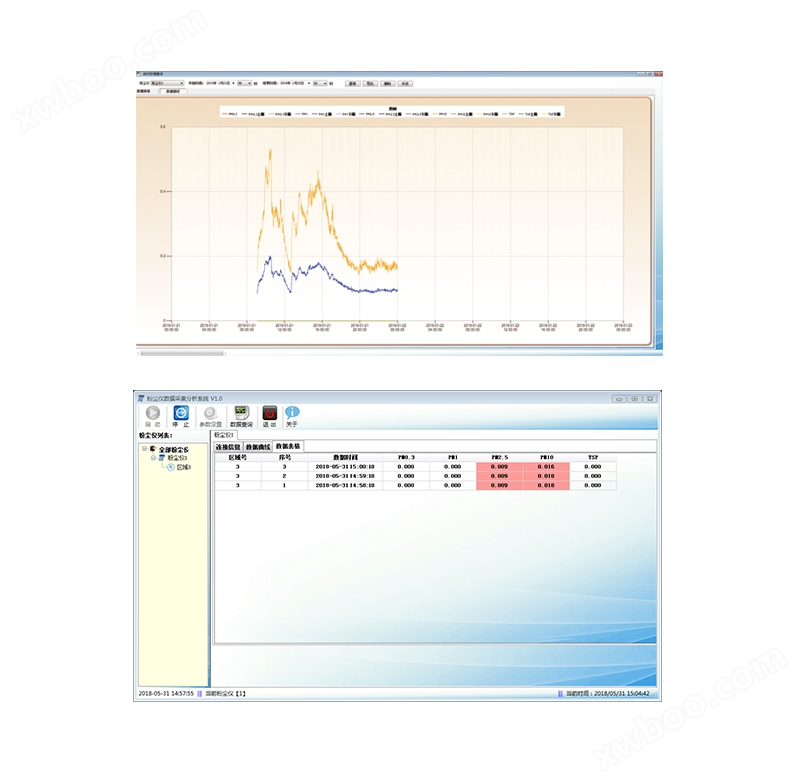

Supporting analysis software

Equipped with data collection and analysis software, the measurement data is transmitted to a computer for statistical analysis.

Over limit alarm function

When the concentration exceeds the set alarm value, the instrument will sound and light an alarm.

Instrument information parameters

The product parameters details of HX-ZF desktop dust concentration tester are as follows

Instrument name: HX-ZF desktop dust concentration tester, measuring range: 0.001~20mg/m ³

Relative measurement error ≤± 10%, detection sensitivity 0.001mg/m ³

Sampling time from 0 to 99 minutes, data storage capacity of 100000 pieces, no loss during power outage

The working power supply is equipped with a built-in battery and can be used for both AC and DC communication, including digital and analog signals (optional)

Digital signal RS232, RS485 analog signal (optional) 4-20mA, 0-5V

Host volume 320mm * 280mm * 125mm Host weight approximately 1.2kg
