Fully automatic hydraulic deviation adjustment device. It has been widely used by belt conveyors.

Can be matched with belt conveyors of different bandwidths:800MM,1000MM,1200MM,1400MM,1600MM。

Specification ModelHFYA-800、HFYA-1000、HFYA-1200、HFYA-1400、HFYA-1600

The fully automatic hydraulic deviation adjustment device has the function of upper and lower strip rollers and a unique hydraulic correction function, so it has efficient correction speed. Automatically detect and correct the deviation at this time, so that the belt can always operate in a reasonable state, thus offsetting phenomena such as improper installation, operation failure, special material impact, load changes, and uneven elongation between belt sections of the belt conveyor. The hydraulic fully automatic deviation adjustment device generates power through friction rotation of the centering theory, so it does not require a power supply, automatically adjusts and corrects, and has the characteristics of simple structure, reliable performance, and easy installation. It adopts a fully enclosed structure, so it can work normally in any harsh environment.

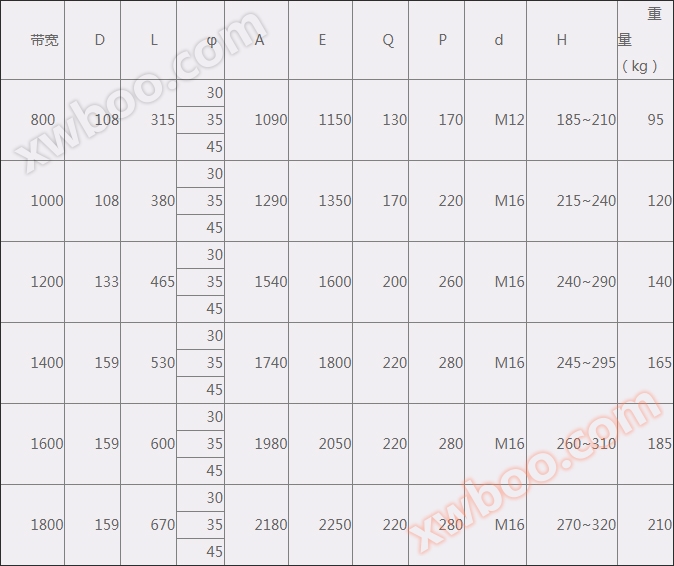

The external dimensions of the correction device are shown in the table

V-shaped automatic correction device

Flat automatic correction device
