FD5328E Digital Printing Machine
1. Fully enclosed ink stack, tighter sealing, long-lasting moisturizing, automatic cleaning, cleaner and simpler printing.
2. 4.5L large capacity ink cartridge, paired with 4 500ml secondary float buffer ink cartridges; Automatic alarm for main ink cartridge liquid level detection
3. Servo motor, 400W motor, with high driving force, faster speed, and smoother operation.

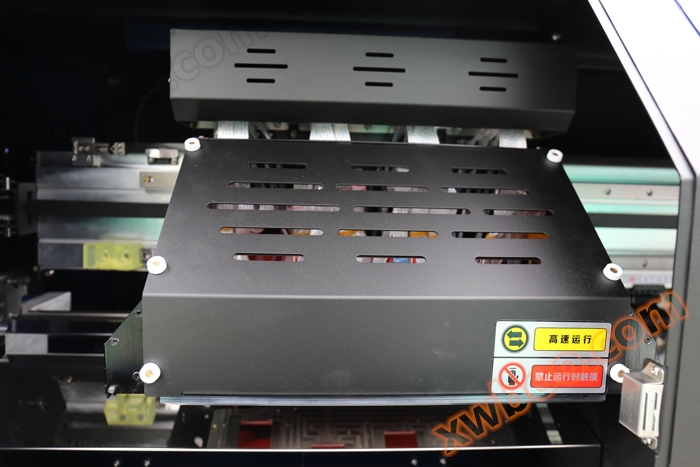

4. Anti collision small frame: The height of the nozzle can be adjusted according to different printing consumables, and anti-collision devices can be added at both ends to provide more comprehensive safety protection for the nozzle.
5. Expansion type self-locking synchronous wheel structure ensures uniform step accuracy and smaller errors
6. Inflatable shaft type rewinding system: This rewinding system can retract up to 1000 meters of paper and has the characteristics of high load-bearing capacity, long service life, uniform force distribution during paper feeding and unloading, and short inflation and deflation operation time. The unique swing rod in the roll up and roll up system ensures even force distribution on the paper during the entire printing process, resulting in a smooth and compact roll up.
Technical parameters and specifications
Equipment model |
FD5328E |
|
Nozzle |
nozzle type |
Epson I3200-A1 |
Number of nozzles |
8 of them |
|
Nozzle properties |
Automatic cleaning, automatic flash spray moisturizing function |
|
PRINT SPEED |
1pass |
420㎡/h |
2pass |
210㎡/h |
|
ink |
color profile |
C M Y K |
Ink type |
sublimation ink |
|
Ink supply method |
Siphon ink supply |
|
Effective width |
3200mm |
|
Print media |
HEAT TRANSFER PAPER |
|
Media transmission |
Inflatable shaft automatic retraction system |
|
Drying method |
External intelligent air and heat integrated dryer |
|
Moisturizing mode |
Fully sealed automatic moisturizing and cleaning |
|
Rip Software |
Support Maintop6.0, photoprint, ONYX, NeoStampa and other software, with Maintop6.0 as standard |
|
Support image formats |
JPG, TIF, PDF, etc |
|
computer configuration |
operating system |
Win7 64 bit/Win10 64 bit |
hardware requirements |
Hard drive: 500GB or above (solid state drive recommended), 8GB of RAM, graphics card: ATI discrete graphics card with 4GB of RAM, CPU: i7 processor |
|
Interface |
Gigabit Ethernet port |
|
Standard configuration |
Intelligent drying system, liquid level alarm system |
|
work environment |
Humidity: 35% -65% Temperature: 18-30 degrees |
|
power requirement |
INPUT VOLTAGE |
210-230VAC 50/60 HZ 16A |
printing system |
1500W |
|
drying system |
Maximum power: 3600W |
|
Machine size |
outline dimension |
5140*1350*1860mm |
Package size |
5280*1180*1770mm |
