FD1900-3200 Digital Printing Machine
FD1900-3200 Digital Printing Machine
Product details

FD1900-3200 Digital Printing Machine



Function and characteristic

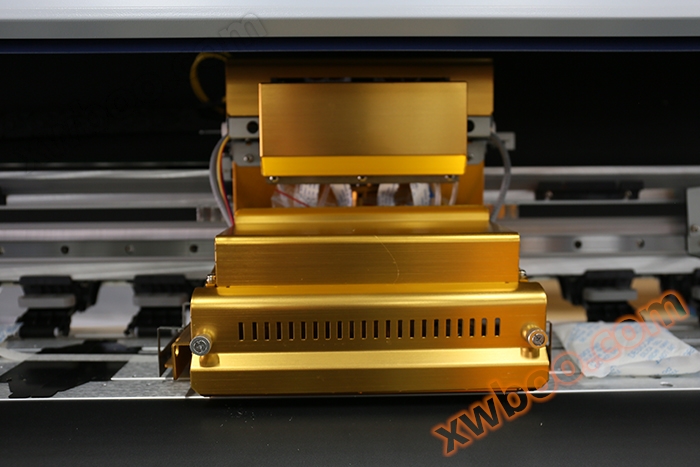

1. Small frame: The independently developed dual head nozzle height can be adjusted freely, flexibly responding to different thicknesses of printing materials, with a luxurious gold color scheme. The anti scratch paper function on both sides of the small frame reduces damage to the nozzle caused by paper warping.


2. Ink cartridges: 4 units of 3L ultra large capacity ink cartridges provide independent continuous ink supply, ensuring long-term continuous operation of the device.


3. Disc filter: effectively removes impurities from ink, ensuring smooth ink supply while protecting the nozzle.



4. Intelligent ink shortage alarm: Intelligent ink shortage reminder reduces the tedious task of frequently checking the remaining ink level, while timely reminding to add ink to ensure the continuity of printing work.


5. Ink stack: equipped with advanced intelligent nozzle cleaning and moisturizing devices, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.



6. FD1900 intelligent wind and heat integrated dryer, with two-stage heating, central warm air, and intelligent start stop technology, ensuring more energy-saving while drying.



Technical parameters and specifications

Technical parameters and specifications

Equipment model

FD1900-3200

Nozzle

nozzle type

EPSONI3200-A1

Number of nozzles

2 of them

Nozzle properties

Automatic cleaning, automatic flash spray moisturizing function

PRINT SPEED

production mode

3pass \ \ 360X1800dpi 64 square meters/hour square meters/hour

Equilibrium mode

4pass \ \ 720X1200dpi 50 square meters/hour square meters/hour

High precision mode

6pass \ \ 720X1800dpi 32 square meters/hour ㎡/h

ink

color profile

C M Y K

Ink type

sublimation ink

Ink supply method

Siphon ink supply

Effective width

1900mm

Print media

HEAT TRANSFER PAPER

Media transmission

Dual power direct collection

Drying method

External intelligent air and heat integrated dryer

Moisturizing mode

Fully sealed automatic moisturizing and cleaning

Rip Software

branchhold

Maintop 6.0, photoprint, ONYX, NeoStampa and other software, standard configuration

Maintop6.0

Support image formats

JPG, TIF, PDF, etc

computer configuration

operating system

Win7 64 bit/Win10 64 bithardware requirements

hard

tray

500GB or above (recommended to use solid-state drive), 8GB of RAM, graphics card

: ATI discrete graphics 4GB memory, CPU: Intel quad core i5/i7 processor

Interface

Gigabit Ethernet portStandard configuration

Tension paper delivery system, intelligent drying system, liquid level alarm system

work environment

wet

linear measure

35% -65% Temperature: 18-30 degrees

power requirement

INPUT VOLTAGE210-230VAC 50/60 HZ

16A

printing system

1000W

drying system

maximum power

∶3600W

Machine size

289

outline dimension

400
