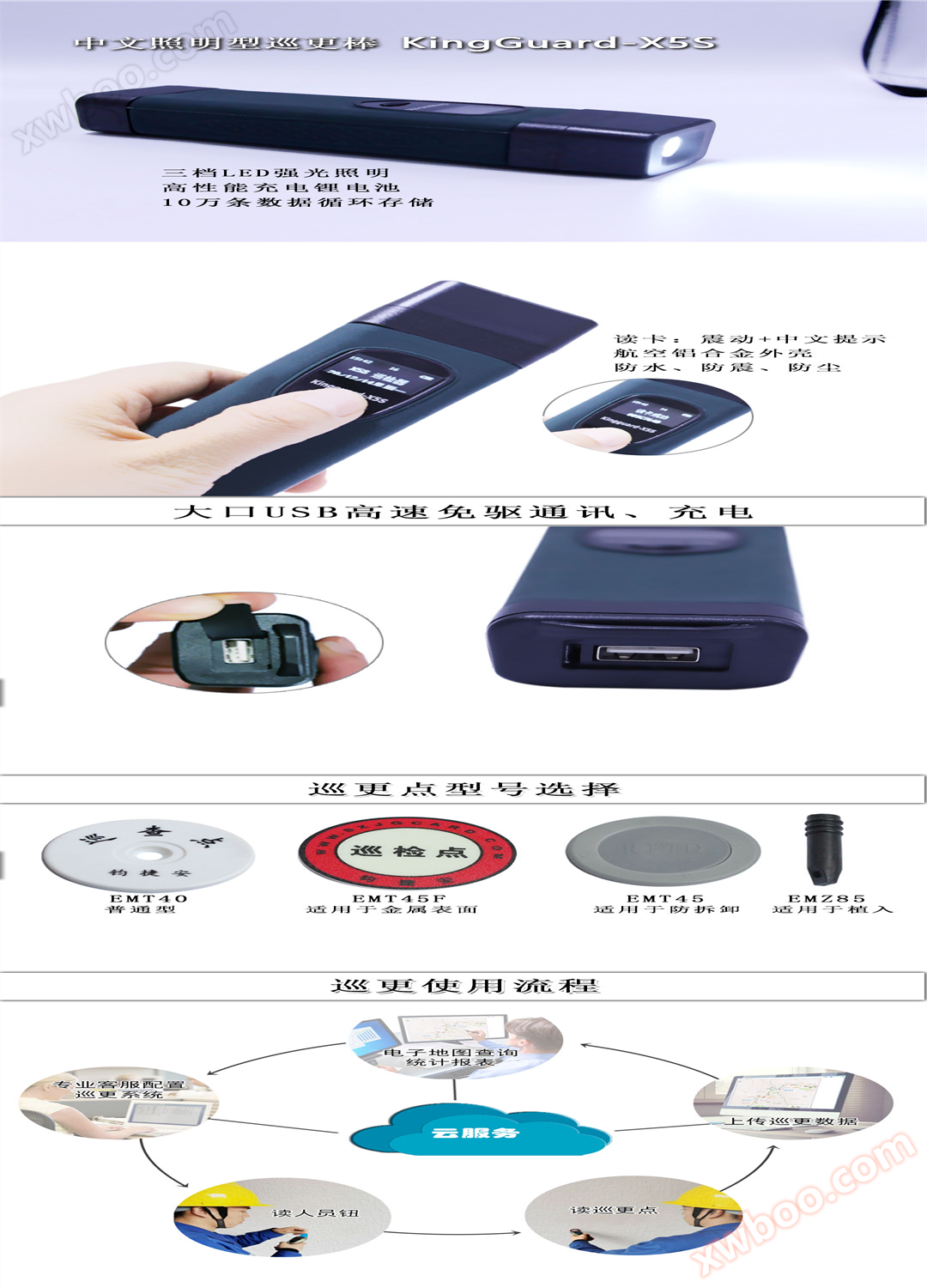

Equipment Name: Chinese Lighting Patrol Rod
Equipment model: KingGuard-X5S
Lighting method: Three level LED strong light illumination
Reading type: Inductive reading 125KHZ
Communication method: Big mouth USB drive free
Protective material: aviation aluminum alloy
Storage capacity: 100000 cyclic storage
Card reading method: vibration+Chinese prompt
Display mode: Current date, time, and successful card reading prompt
Operating temperature: -40 ℃ -70 ℃ and passed low-temperature testing
Whole machine weight: 190g
Dimensions: 145 × 47 × 26mm
Equipment Name: Inspection Point (Choose one or use in combination)
Equipment model: EMT45
Material: ABS material
Reading frequency:>350000 times
Reading method: Non contact induction reading.
Reading distance: 3cm~5cm
Frequency: 125KHZ
Working temperature: -40 ℃ -85 ℃
Installation method: Paste or fix on the wall surface with screws
Size: Diameter 45mm
Protective performance: waterproof, dustproof, anti-corrosion, shockproof
Uniqueness: The internal code is an internationally unique code with no duplicates
Equipment model: EMZ85
Material: ABS material
Reading frequency:>350000 times
Reading method: Non contact induction reading.
Reading distance: 3cm~5cm
Frequency: 125KHZ
Working temperature: -40 ℃ -85 ℃
Installation method: Buried in the wall to prevent loss
Protective performance: waterproof, dustproof, anti-corrosion, shockproof
Uniqueness: The internal code is an internationally unique code with no duplicates
Dimensions: Column shaped 37mm, diameter 8.5mm, surface with luminous identification film
Equipment model: EMT45F
Material: Acrylic material
Reading frequency:>350000 times
Reading method: Non contact induction reading.
Reading distance: 3cm~5cm
Frequency:125KHZ
Working temperature: -40 ℃ -85 ℃
Installation method: Paste or fix with screws, or use lead sealed steel wire to fix on the surface of the equipment
Size: Diameter 45mm
Protective performance: waterproof, dustproof, anti-corrosion, shockproof, and metal interference resistant
Uniqueness: The internal code is an internationally unique code with no duplicates
Equipment Name: Name Recognition Button (Required)
Equipment model: EMR
Reading frequency:>350000 times
Reading method: Non contact induction reading.
Reading distance: 3cm~5cm
Frequency: 125KHz (EM)
Working temperature: -40 ℃ -85 ℃
Weight: 1.8g droplet shaped, metal keyring, easy to carry, colorful
Cloud platform software system technology functions：
1. Setting up, querying, and downloading communication clients are all operated through the login username and password in the cloud. To avoid risks, the company only provides the highest authority username and password, while others are set by users themselves to increase security.
The client can import newly added inspection points and name recognition buttons through ECXEL, and after import, the backend can perform batch modification and processing, saving the tedious manual input.
Three lines can be set for different routes at a point, and the items and logical values under that inspection point can be attached.
Each line can have multiple plan settings, including scheduled inspections, daily inspections, daily inspections, weekly inspections, weekly inspections, monthly inspections, sampling inspections, temporary plans, etc. The plan can also be temporarily suspended.
Real time monitoring of 5 electronic maps, each inspection point can be marked on the electronic map, displayed in green, yellow, red, and blue: red indicates not inspected; Blue indicates that it has been inspected. Place the mouse on it to clearly display the inspection information of the inspection point.
6. Diversified queries for original record reports and assessment reports, which can be analyzed and queried by route, personnel, and team.
7-day statistical report (inspected points, non inspected points, pass rate of points), weekly and monthly statistical report (inspected points, non inspected points, pass rate of points), matched with multiple query methods
The 8 electronic map query report provides a more intuitive reflection of the inspection situation within the map.
9 department statistics function, which can directly count the number of unfinished inspections and specific line information for easy management
10 accounts and permissions can be freely assigned by the administrator, and this system provides API secondary development interfaces.
The 11 system comes with access control, hazard management, online inspection, attendance system, etc., making management easier and more free.
