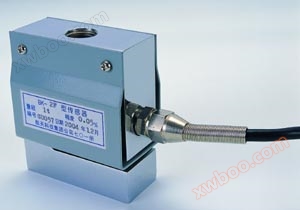

BK-2FA S-type force/weight sensor
BK-2FAS type force/weight sensor · The elastic body is a double hole or shear S-beam structure, compact in structure, used for measuring tensile and c
Product details
·High precision, good symmetry of tension and compression output, stable and reliable performance, wide range of measurement, easy installation and use.
·Tension compression bearing.
·Suitable for various tensile and compressive testing, electronic scales, and industrial automation measurement and control systems.
|
Main technical indicators
|
||||
|
measurement range
|
BK-2FA |
0～10,20,30,40,50,60,80,100,150,200,300,500,600,800,1000 | kg | |
|
Output sensitivity |
1.5～2.0 | mV/V | ||
|
Straightness L |
±0.02; ±0.05 | %F. S | ||
|
Lag H |
±0.02; ±0.05 | %F. S | ||
|
Repetitive R |
±0.02; ±0.05 | %F. S | ||
|
Operating Temperature |
-10～+60 | ℃ | ||
|
Temperature compensation range |
Room temperature~+60 | ℃ | ||
|
Zero temperature influence |
±0.05 | %F. S/10 ℃ | ||
|
Output temperature impact |
±0.05 | %F. S/10 ℃ | ||
|
excitation voltage |
12 | VDC | ||
|
insulation resistance |
2000 | MΩ/100VDC | ||
|
Input resistance: Steel |
380±5 | Ω | ||
|
aluminum |
400±5 | Ω | ||
|
output resistance |
350±2/350±5 | Ω | ||
|
Zero point output |
0～±1 | %F. S | ||
|
Safety overload rate |
120 | %F. S | ||
 |
 |
|||||||||||||||||||||||
|
|
Electrical connection method
|
||
|
connection method
|
Plug socket number
|
Wire color
|
| Input (power) positive terminal |
1
|
red
|
| Output signal positive terminal |
2
|
Huang
|
| Negative end of output signal |
3
|
white
|
| Input (power) negative terminal |
4
|
blue
|
| block | / | black |
| If the plug socket number or wire color changes, please refer to the sensor calibration certificate for accuracy. | ||
